Product Details:
|
| Control: | LED PLC / Touch-sreen PLC | Press: | Vertical |
|---|---|---|---|
| Drive: | Compressed Air / Cylinder | Heat: | Steam |
| Electric Power: | 220V/1ph/50HZ | Certification: | ISO9001:2015 |
| Highlight: | Mushroom Pressing Laundry Press,Steam Heating Laundry Press,Automatic Touch Screen Laundry Press |
||

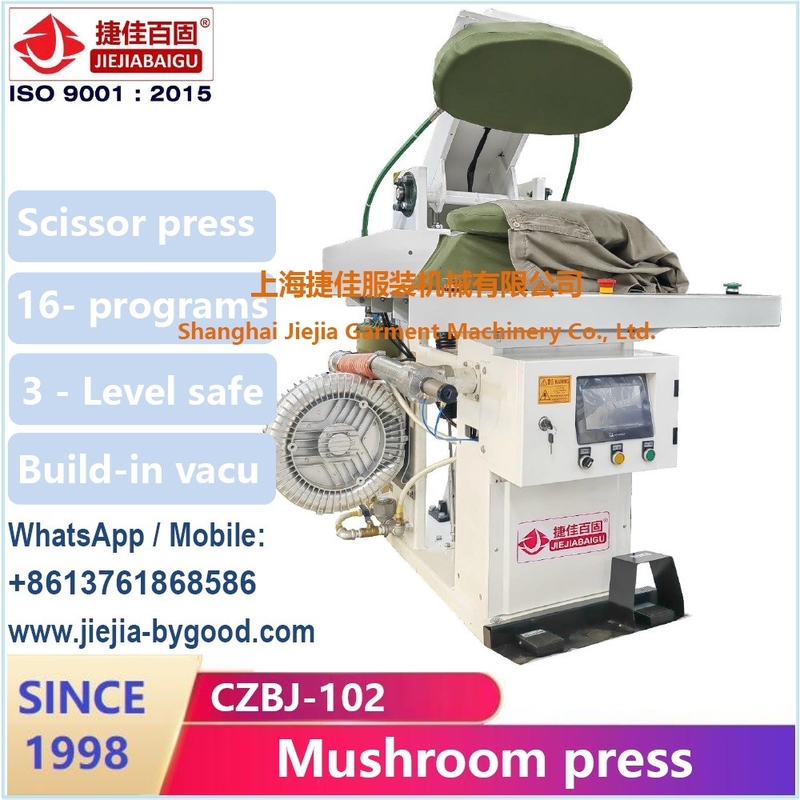

Laundry utility mushroom press automatic touch-screen control system steam heating system
I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic suit jacket press machine (sleeve elbow seam)
| Model | CZBJ-102 |
| Control | Automatic LED PLC / touch-screen PLC |
| Total pressure | 200kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 0.75kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 900x1200x1300mm |
| Net weight | 320kg |
III. Feature
Scissors-type close & vertical press
Metal buck is suitable for garment
(customizable)
Automatic LED PLC / Touch-screen PLC
3 level safety protection device
180mm length shock absorber (long life)
Steam heating system
Top buck steam spray
Italy steam valve
(steam chamber supply much volume)
Bottom buck has vacuum
Famous pneumatic parts
IV. Full inline suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-120-21 | sleeve front seam | 900x1200x1300 |
| 2 | CZBJ-120-31 | sleeve elbow seam | 900x1200x1300 |
| 3 | CYAJ-112-31 | Left front dart press | 1200x1200x1650 |
| 4 | CYAJ-113-31 | Right front dart press | 1200x1200x1650 |
| 5 | CYAJ-112 | Left interline | 1200x1200x1650 |
| 6 | CYAJ-113 | Right interliine | 1200x1200x1650 |
| 7 | CYAJ-104-41 | Sleeve stetch | 900x1200x1650 |
| 8 | CYAJ-120 | Back & side seams | 1200x1200x1650 |
| 9 | CZBJ-103 | shoulder seam | 900x1200x1300 |
| 10 | CYAJ-368 | Front and edge | 1200x1200x1650 |
| 11 | CYAJ-369 | Front and edge | 1200x1200x1650 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
Add: No. 2759 Shendu Road, Shanghai, China 201112
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
