Product Details:
|
| Control: | Touch-sreen PLC | Press: | Vertical |
|---|---|---|---|
| Drive: | Air Cylinder | Heat: | Steam Chamber & Pipe |
| Location: | Laser Pilot | Buck: | Right Left Front |
| Buck Gap: | Set In PLC 0 To 50mm | Steam Spray: | Japan Design Vavle & Italy Made Valve |
| Highlight: | Left Front Jacket Pressing Machine,right front Jacket Pressing Machine,Air Cylinder clothes pressing machine |
||
Touch screen PLC Jacket blazer front vertical press machine equipment suit final press
1. Instructions:
1, Available to press any special parts of cloth.
2, With strong vacuum moisture removing system.
3, Can press cloth dehydrated.
4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...

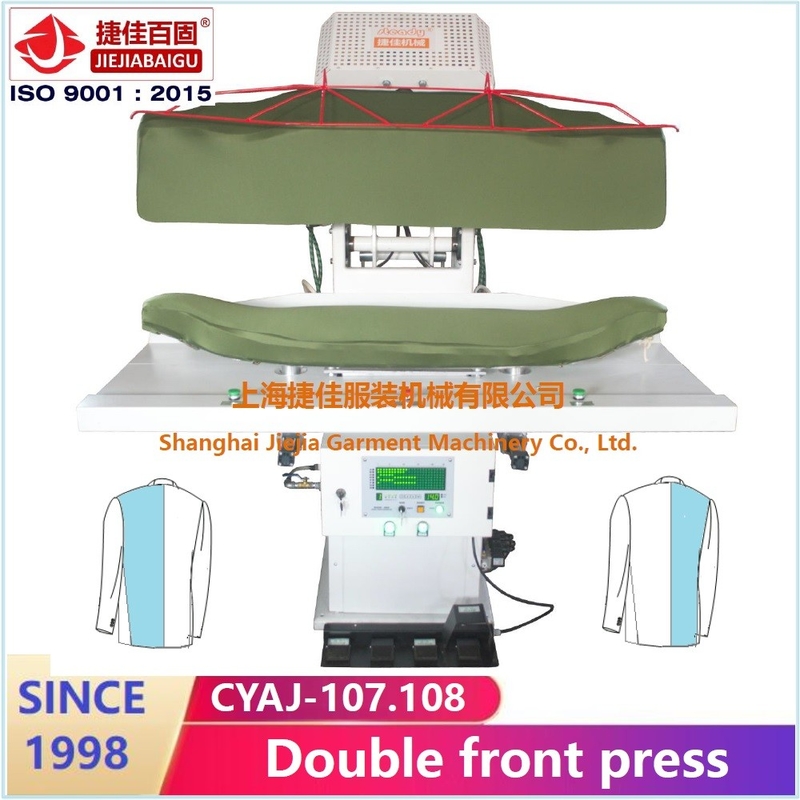

CXAJ-107 (Left front press) & CXAJ-108 is used to press jacket blazer suit front in suit final press line.
They are designed for different kind of fabric with many different functions
2. Machine perameter:
| Model | CXAJ-107 (left), CXAJ-18(right) |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Buck gap | 0-50mm set in PLC |
| Location pilot | Laser light *2 |
| Dimension | 1200x1200x1650mm |
| Net weight | 520kg |
3. Machine's advantage
3.1 ) Vertically press: full surface move down at same time to make pressure equally
3.2 ) Touch-screen PLC with more function
3 level safety protection design
buck gap is able to set between 0-50mm in PLC
3.3 ) Advanced 180mm length shock absorber (long life use)
3.4 ) with location pilot laser light
3.5 ) top buck and bottom buck with steam heating chamber
3.6 ) Top steam spray by Japan design valve (steam: dry & huge valume)
3.7 ) Steam spray: top + bottom
3.8 ) Vacuum: bottom + top
3.9 ) top buck with extra heating pipe
4. Machine's application
4.1 ) High class wool jacket blazer front suit final press
4.2 ) Dark color light fabric jacket blazer font suit final press
4.3 ) classical jacket blazer font suit final press
4.4 ) formal jacket blazer font suit final press
5. Machine's picture
6. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CXAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CXAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CXAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CXAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CXAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CXEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CXGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |
7. Company profile:
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
8. Q&A
8.1 —How could I get more information?
please contact with E-mail and telephone
8.2 —Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
8.3 —Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
8.4 —Do you have machine video?
Yes. please contact with us.
8.5 —Are you factory?
Yes. We have manufactured for over 20 years.
8.6 —Could I customize machine or buck
Yes. We could make machine according to your requirement.
